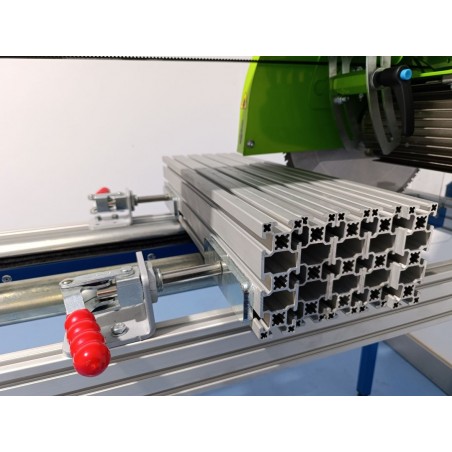

Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm
    • Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm
    • Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm
    • Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm

    Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm

    0103003105
    Select model
    Quantity
    £3,700.56 Price with VAT
    £3,083.80 Price without VAT

    In stock Free shipping in 4-5 working days

    Click and add accesories


    2 years extendable warranty



    Request technical assistance or help with your purchase

    Related products Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm

    Machine Bestsellers SIMA

    Description Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm

    SIMA launches the only cutting table in the market especially designed to cut SIP panel: expanded Polyurethane (PUR) foam, Polyestyren foam panels (EPS), and rock wool panels, A lightweight affordable machine… with the performance of a stationary machine.

    IInsulated Panels Sawfor Blades up to 14"/ 350mm. Motor: Threephased 415V. Max cutting depth: 4"/100mm-blade 14"/350mm. Length: 1250mm

    See technical data

    Data sheet - Insulated Panels Saw 14"415V Elect. VENUS Polypanel 1250mm

    Motor Phase (1Phase/3Phase) Threephased
    Engine / Motor Power (Kw) 2,2
    Motor Voltage (V) 230/400
    Frecuency Motor (Hz) 50
    Installed plug 400V. 16A. 3P+N+T 6H
    Max. Blade diameter (mm) 350
    Max cutting depth (mm) 100
    Max cutting length (mm) 1250
    45º Cutting Yes
    Water tank capacity (L) 45
    45
    Pump Power (W) 50
    Pump voltage (V) 230
    R.P.M. Motor 2800
    Blade Peripheral Speed (rpm) 2800
    Weight (Kg) 102,7
    Minimum quantity packing 1
    Package Sizes (LxWxH) (mm) 1970 X 800 X 670+140
    Dimensions (LxWxH) (mm) 1892X765X1234
