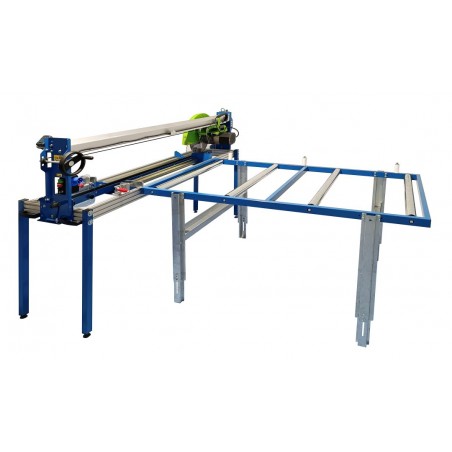

Description Insulated Panels Saw 14"110V Elect. VENUS Polypanel 1250mm
Did you know that SIMA polypanel is the only table you can find in the market especifically manufactured to cut SIP panels? The Venus Polypanel is a super lightweight insulated panel polypanel that will work as a stationary panel saw without making a huge investment. It will cut through rock wool panels, Polyesteryen foam panels (EPS), and expanded Polyurethane (PUR) foam, among others.
SIMA Venus Polypanels Saw can be used for blades up to 14”/350mm.
Motor: Singlephase 110V.
Max cutting depth: 4”/100mm-blade 14”/350mm.
Data sheet - Insulated Panels Saw 14"110V Elect. VENUS Polypanel 1250mm
|Motor Phase (1Phase/3Phase)||Singlephased|
|Engine / Motor Power (Kw)||2,2|
|Motor Voltage (V)||110|
|Frecuency Motor (Hz)||50|
|Installed plug||110V. 16A. 2P+T 6H|
|Max. Blade diameter (mm)||350|
|Max cutting depth (mm)||100|
|Max cutting length (mm)||1250|
|Water tank capacity (L)||45
|Pump Power (W)||50|
|Pump voltage (V)||110|
|Blade Peripheral Speed (rpm)||2800|
|Minimum quantity packing||1|
|Package Sizes (LxWxH) (mm)||1970 X 800 X 670+140|
|Dimensions (LxWxH) (mm)||1892X765X1234|
